P.Lemmens - DDL 76-86 (LM59)

P.Lemmens - DDL 76-86 (LM59)

€99,99
€99,99
Sale Sold out



Warning: Bodart&Gonay version here

SKU/ID : 740007

Compatibility

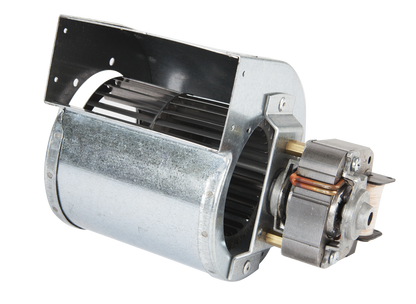

The tangential fan Lemmens DDL 76-86 (LM59) reference 740007 is used in many inserts and closed fireplaces equipped with a Lemmens tangential fan of identical dimensions and configuration.

Confirmed compatibility

  • EFEL

    • IT43

    • ITH43

    • ITH33 6700F (older model)

  • Bodart & Gonay

    • Appliances and cassettes using the Lemmens DDL 76-86 (LM59) fan, according to the original configuration

  • FLAM

    • MT series (before 1993)

    • Please pay attention to the LM59B variant and motor orientation depending on the installation

To check before ordering

Before ordering, it is essential to check the following points on your appliance or existing fan :

  • Motor position (left or right)

  • Presence or absence of a mounting plate

  • Identical dimensions to the replaced fan

  • Identical electrical connection and power supply

If in doubt, compare your current fan with the product photos or contact our support.

Equivalent and associated references

This fan may also be referenced under the following designations :

  • DDL 76-86

  • LM59

  • 740047

  • 740022

  • 740021

  • FL40585

  • 07EVDDA3

  • LM59B (specific variant depending on the appliance)

  • LM59P (variant with mounting plate)

These references are provided for information purposes only to facilitate product identification.

Product information

Original Lemmens tangential fan, designed to ensure optimal hot air distribution in compatible inserts and closed fireplaces.

  • Manufacturer reference : 740007

  • Designation : DDL 76-86 (LM59)

  • Brand : Lemmens


Excellent

Trustpilot

4,5
All dimensions are outside dimensions

Description

Weight

1.2 Kg

IP class

20

Motor

Motor LM 59,6 mm

Thermal class

F

Supply

230 V - 50 Hz

Speed control

ES3

Capacitor - Thermal Protection - CE Conformity

Shipping

Packages are shipped every working Tuesday after receipt of your payment. As soon as possible, we will provide you with a link that will allow you to track the delivery of your package online.

Shipping costs include packaging, handling and postage. They can contain a fixed part and a variable part depending on the price or the weight of your order. We advise you to group your purchases into a single order. We cannot group two separate orders and you will have to pay the shipping costs for each of them. Your package is shipped at your own risk, special care is taken for packages containing fragile products.

Packages are oversized and protected.

Tips for use

  • Only a qualified person may make the electrical connection of the fan or the variable speed drive.
  • Please observe the connection diagram.
  • Only Airshop (or PLC) variable speed drives can be applied to Airshop fans. ‘Normal’ commercial dimmers are prohibited.
  • Do not use the fan at a voltage & lt; 120V with the speed controller (the minimum voltage of the speed controller is adjustable). This may damage the windings and therefore the life of the product.
  • Make sure that the thermal insulation system provided by the stove manufacturer is in good condition. Insufficient insulation can damage the windings and therefore affect the life of the product.
  • Make sure that the air flows inside the stove are free and that it can circulate easily. The same goes for the cleanliness of the filters. An obstruction of the air flow can result in overheating of the motor which will damage the windings and therefore impair the life of the product.
  • Perform a visual inspection of the fan every 6 months. Clean carefully with a damp cloth if necessary. (Do not put in the dishwasher !!)
  • Failure to follow these tips can lead to rapid deterioration of the winding and destruction of the motor, and therefore exclusion of the warranty.
