Shop / P.Lemmens - DDL 133-200 I/O

P.Lemmens - DDL 133-200 I/O

P.Lemmens - DDL 133-200 I/O

€259,99
€259,99
Sale Sold out



SKU/ID : 740030

Compatibility

The fan P. Lemmens DDL 133-200 I/O, reference 740030, is used in many inserts and closed fireplaces equipped with a Lemmens fan of identical dimensions and configuration. It is commonly used as a standard solution with an airflow of around 750 m³/h, depending on the setup.

Confirmed compatibility

Bodart & Gonay (Optifire)

  • OPTI 780

  • OPTI 700

  • OPTI 760

  • OPTI 760 DF

  • Optifire 783/2

  • Optifire 763

  • Optifire 764

M-Design

  • LUNA

  • VENUS

  • ARGENTO

To check before ordering

Before ordering, it is essential to check the following points on your appliance or existing fan :

  • Power supply and voltage (e.g. 230V depending on version)

  • Presence of a capacitor (often 2 µF depending on configuration)

  • Identical dimensions, mounting and electrical connection

  • Mechanical compatibility with the ventilation kit or appliance

If in doubt, compare your current fan with the product images or contact our support team.

Equivalent and associated references

This fan may also be referenced under the following designations :

  • DDL 133-200 I/O

  • 740030

  • 07EVDDA6 (Bodart & Gonay reference)

These references are provided for information purposes only to facilitate product identification.

Product information

Original P. Lemmens fan, designed to ensure efficient and reliable hot air distribution in compatible inserts and closed fireplaces.

  • Manufacturer reference : 740030

  • Designation : DDL 133-200 I/O

  • Brand : P. Lemmens

Excellent

Trustpilot

4,5
All dimensions are outside dimensions

Description

Weight

2.1 Kg

IP class

20

Motor

133-200

Thermal class

Supply

Speed control

Shipping

Packages are shipped every working Tuesday after receipt of your payment. As soon as possible, we will provide you with a link that will allow you to track the delivery of your package online.

Shipping costs include packaging, handling and postage. They can contain a fixed part and a variable part depending on the price or the weight of your order. We advise you to group your purchases into a single order. We cannot group two separate orders and you will have to pay the shipping costs for each of them. Your package is shipped at your own risk, special care is taken for packages containing fragile products.

Packages are oversized and protected.

Tips for use

  • Only a qualified person may make the electrical connection of the fan or the variable speed drive.

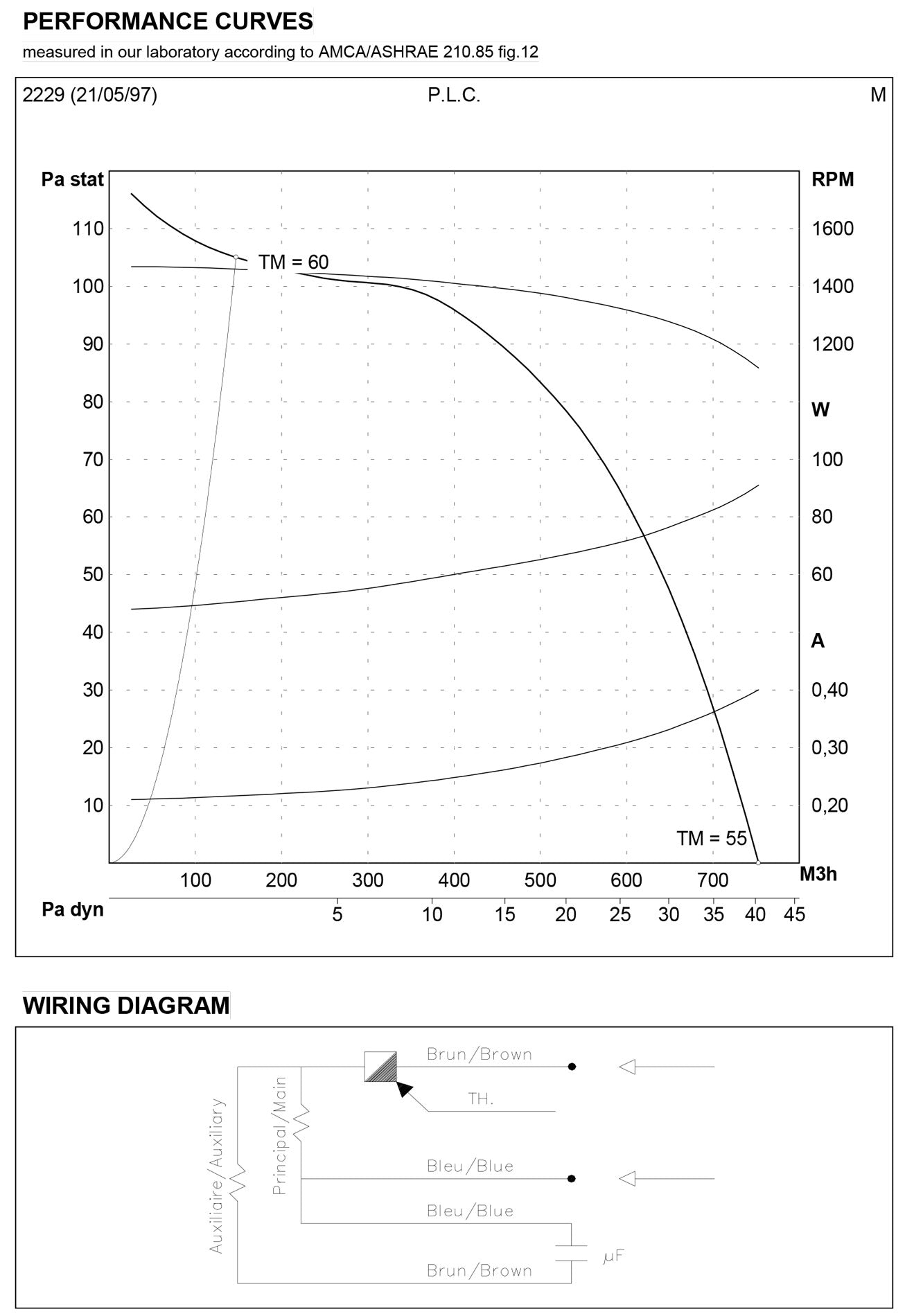

  • Please observe the connection diagram.
  • Only Airshop (or PLC) variable speed drives can be applied to Airshop fans. ‘Normal’ commercial dimmers are prohibited.
  • Do not use the fan at a voltage & lt; 120V with the speed controller (the minimum voltage of the speed controller is adjustable). This may damage the windings and therefore the life of the product.
  • Make sure that the thermal insulation system provided by the stove manufacturer is in good condition. Insufficient insulation can damage the windings and therefore affect the life of the product.
  • Make sure that the air flows inside the stove are free and that it can circulate easily. The same goes for the cleanliness of the filters. An obstruction of the air flow can result in overheating of the motor which will damage the windings and therefore impair the life of the product.
  • Perform a visual inspection of the fan every 6 months. Clean carefully with a damp cloth if necessary. (Do not put in the dishwasher !!)
  • Failure to follow these tips can lead to rapid deterioration of the winding and destruction of the motor, and therefore exclusion of the warranty.
